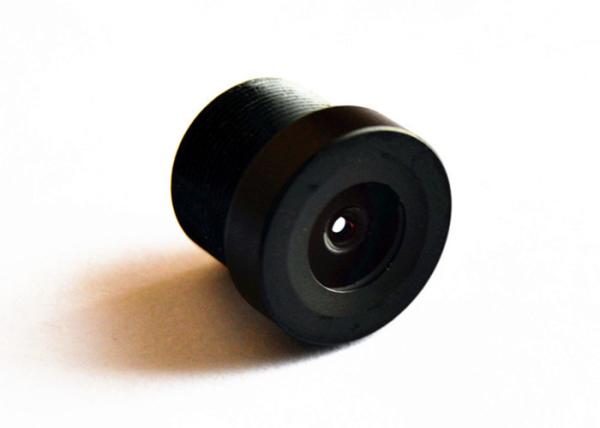

1/4" 2.3mm F2.6 Megapixel M12x0.5 mount 136degree wide angle lens for OV9712

Name: 14quot 23mm F26 Megapixel M12x05 mount 136degree wide angle lens for OV9712
Brand: CCOM LENS
Price: 1 USD

Wholesale 1/4" 2.3mm F2.6 Megapixel M12x0.5 mount 136degree wide angle lens for OV9712 from china suppliers

Brand Name : CCOM LENS

Model Number : 14023MPF-M12(C)

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Western Union, Moneygram, Paypal

Supply Ability : Samples available

Delivery Time : 2-7 work days

Packaging Details : Standard

Video Lens : M12 Mount Wide Angle Lens

Resolution : 1.3MP

FOV(DxHxV) : 136°*105°*60.6°

Lens Constructure : 4G/4G+IR

Contact Now

1/4" 2.3mm F2.6 1.3MP Megapixel M12x0.5 Mount 136degree Wide Angle Board Lens for Automobile data recorder/vehicle rear-view mirror, 2.3mm 1.3MP cctv lens for OV9712 sensor

Model 14023MPF-M12(C)
IMAGE FORMAT 1/4"
MAX IMAGE CIRCLE Ø 5.1mm
FOCAL LENGTH 2.3mm
F.O.V (D*H*V) 136°*105°*60.6°
DISTORTION H -10.7%, V -36.5%
APERTURE F2.6
RESOLUTION 1.3MP
MOUNT M12XP0.5
IRIS Fixed
B.F.L. 3.52mm
F.B.L. 2.47mm
T.T.L. 14.38 mm
DIMENSION Φ14×11.91mm
LENS COMPOMENT 4G+IR
CUT FREQUENCY AT 50% 640±8nm

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M7/M12 mount option

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
